Steam cleaning of wine barrel and bottling lines production

Wine Barrel Cleaning Solutions with Duplex Industrial Steam Pressure products


Wine Barrel Cleaning Solutions with Duplex Industrial Steam Pressure products
quote_1 demo_1




Steam Cleaning of The Bottling Line:

  • Add longevity to your oak barrels
  • Rehydrate and revitalize the Oak
  • Remove left over bitter tannins and melt tartrates


The elevated temperature of the steam allows for a much faster cleaning process of the barrels, melting the tartrates in a fraction of the time than it takes with hot water, all while resulting in massive savings in water consumption. The vapor property of dry steam allows for the pores of the wood to be opened, releasing not only tartrates but also old wine and bitter tannins that have been absorbed inside the wood. The whole process revitalizes the wood barrels while being safe on the char of the oak.


Steam Diffusing Cleaning Inside Barrels to Disinfect

The use of dry vapor steam machines permits an impressive financial savings on wastewater treatment and chemical use.



Cleaning, detartrating and disinfection of barrels:

After decanting, proceed and rinse using a high pressure machine and cold water, duration of steam cycle depending on the age and status of the barrel, proceed again and rinse with cold water.

Wine Barrel Cleaning with Duplex advantages

Steam and water inside barrel in cleaning

Steam Pressure with Barrels




Vaporisation and cleaning of wine barrels using Bacchus Steam System:

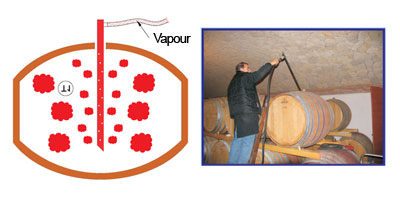

Steam Diffuser inside a Wine Barrel   Vaporisation of Wine Barrel in a few minutes
Steam diffuser inside a barrel   Vaporisation of a barrel for approx 1 minute


  • Disinfection
  • Removal of Bretanomyces from the wood fibers.
  • Complete releasing of scale from the barrel's walls.
  • Detartrating and disinfection of the barrel with only one operation.


Also the Bacchus system can clean bottling lines. Click the image below to go to bottling lines cleaning

Steam Cleaning of a Bottling Production Line with micro Filtration
Steam cleaning of a line with micro filtration



  • Innovative and 100% natural process without the usage of chemicals
  • Does not emit dangerous smokes into the atmosphere, usable also in closed environments
  • No need of special permissions or patents for the usage of our equipments.
  • Rapid start-up of the boiler (about 5 min).
  • Machine with trolley, easy to move as space-saving.
  • Ensures long life to the microfiltration cartridges.

Sanitizing Tanks and Removing Tartrates


Tartrates and other substances commonly cling to the walls of storage tanks, with the simple connection of the Bacchus system to the storage tank the steam melts away all residues and tartrates and the condensation allows for them to drain out the bottom of the tank. A quick rinse with cold water causes a thermo-shock removing any remaining residue from the walls. After only 15 minutes the tank is completely sterilized without the use of caustic or other harsh chemicals, greatly reducing water consumption wastewater treatment. With the Bacchus steam cleaning system there is no need for anyone to enter the tanks anymore, saving precious manpower, time and money

  Sanitizing Tanks and Removing Tartrates

Contact Us today to arrange a obligation free test drive - Australia wide - for Wine Barrel and Bottling Line Cleaning with Bacchus Steam System.
